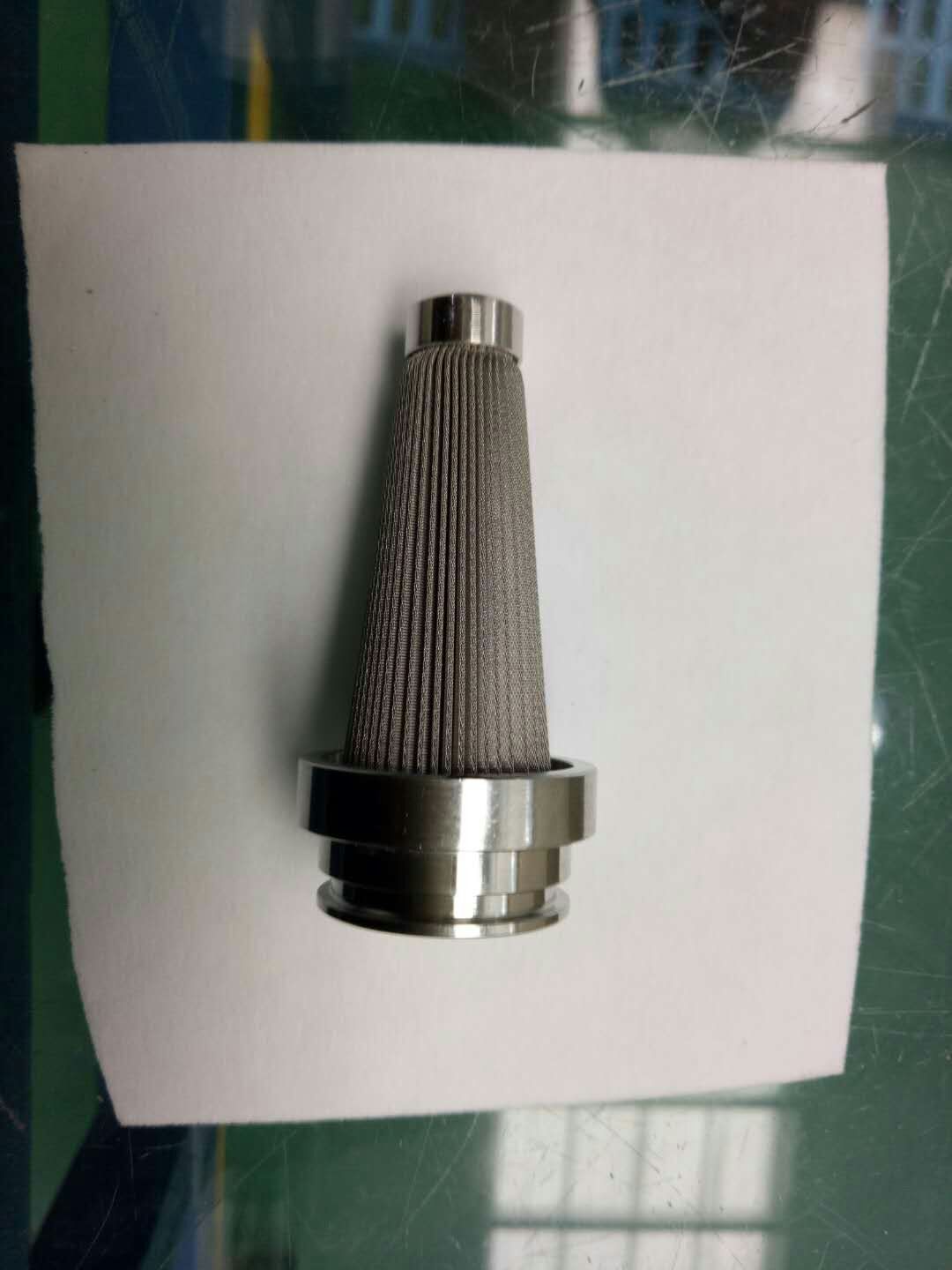

This patent provides a hydraulic oil pipeline filter. Conical filter elements are adaptively installed within the inlet and outlet housings, increasing the outlet area of the filter element and thus increasing the filter's flow rate. The filter includes an inlet housing, an outlet housing, and a conical filter element. The inlet housing has an inlet end and an interface end. The outlet housing is fixedly fitted within the interface end, which has an inlet chamber. The outlet housing has an outlet chamber. The large conical end of the conical filter element is sealed within the outlet chamber, while the small conical end extends into the inlet chamber. The diameter of the large conical end of the conical filter element is larger than the diameter of the inlet chamber. The filter element utilizes a conical structure to increase the filtration flow rate within a limited installation space. An internal shroud supports the filter layer, and the filter layer is woven with a dense twill mesh, creating a corrugated shape to ensure the filter layer's filtration accuracy, area, and strength.
