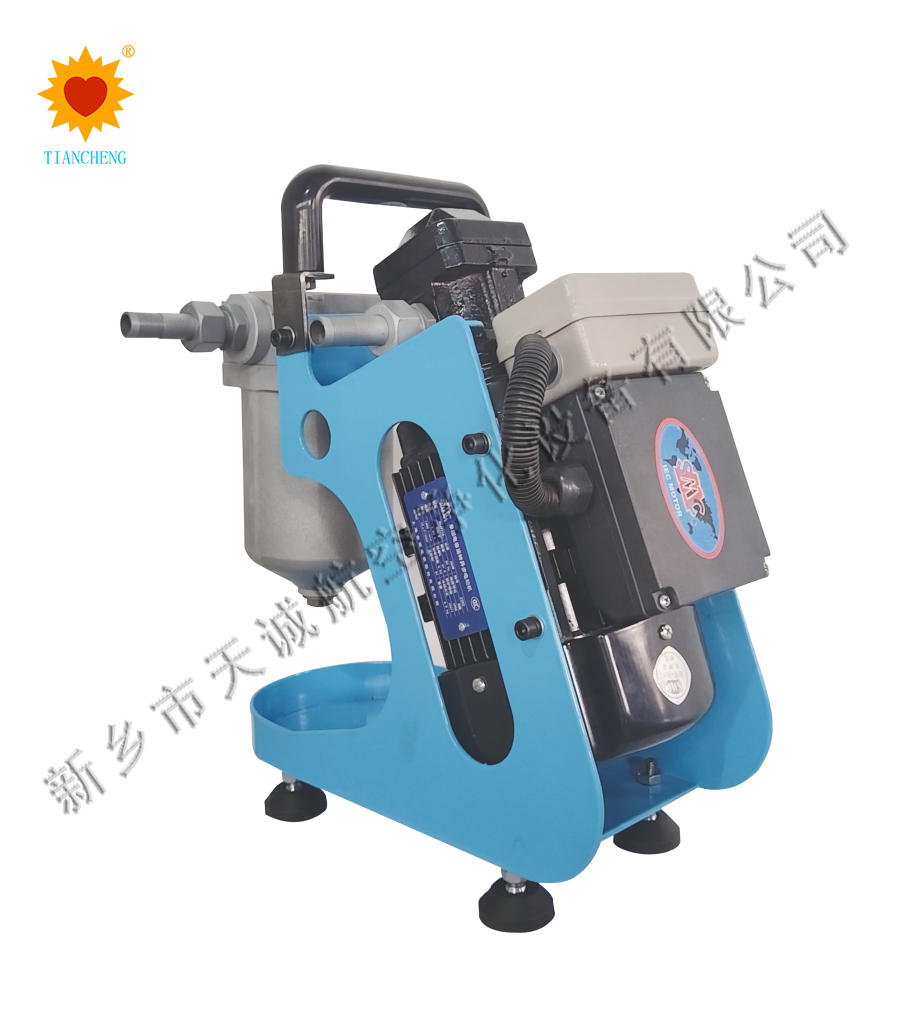

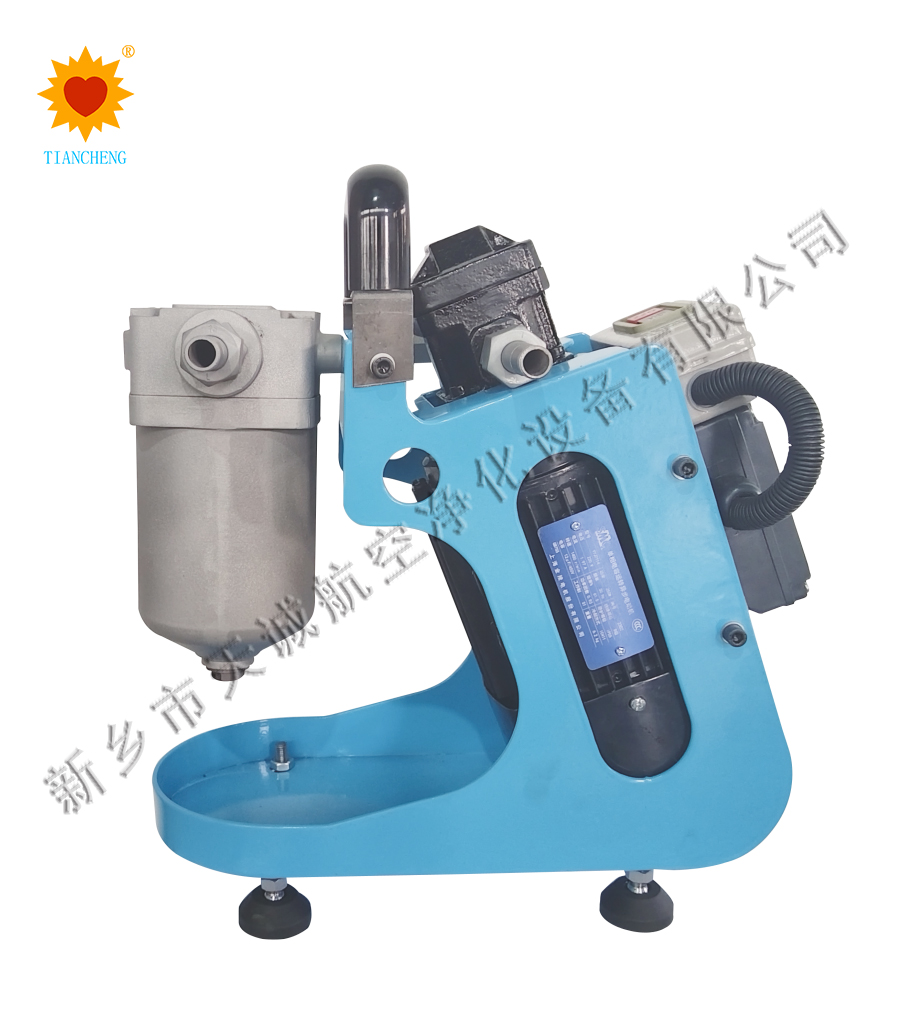

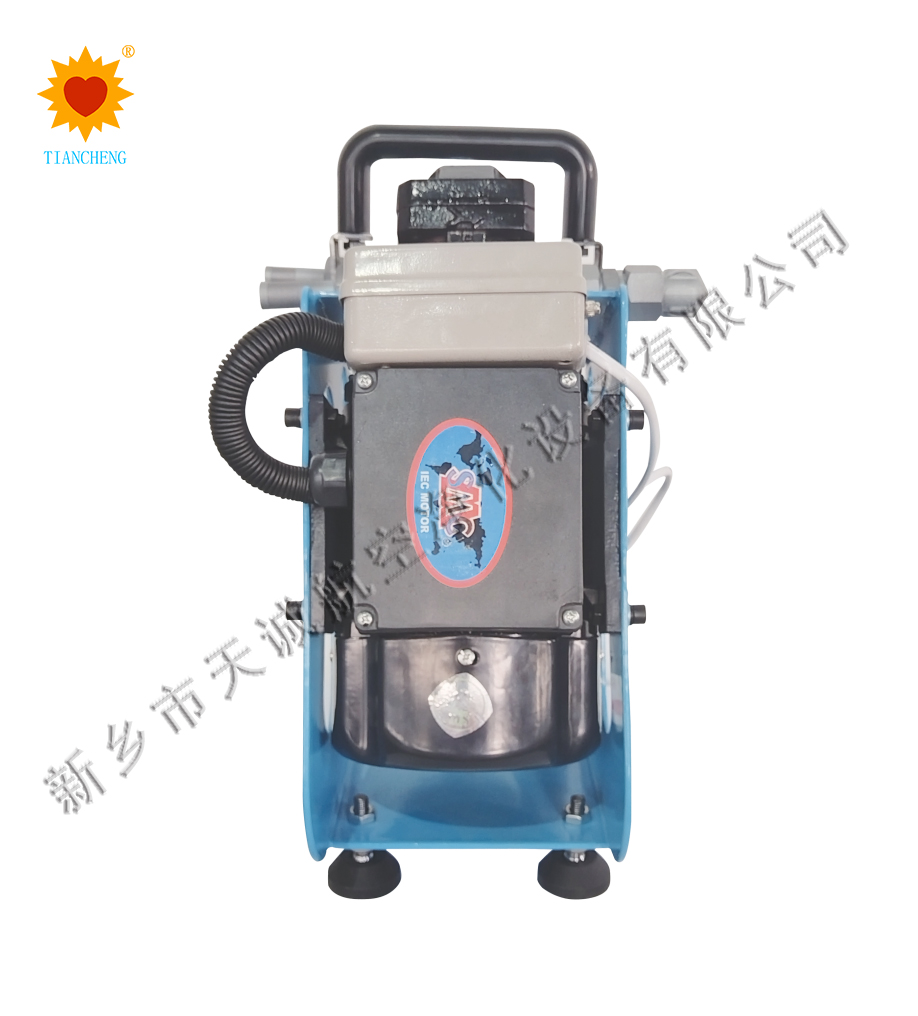

Portable purifier is a small and lightweight filtering device equipped with pump, a two- stage filter and a pressure gauge. Two- stage filtration enhances its performance on purifying liquid. It is easy to carry and can be easily lifted with one hand.
Portable purifier is widely used in small space operation scenes, and purifying hydraulic or lubricate oil while filling.
We can customize the filtration accuracy, pump power, flow rate, interface size and power plug according to actual needs.
|
|
|
流量 Flow rate | 6~16L/min |
工作温度 Operating temperature | 5~80℃ |
工作压力Operating pressure | 0~10bar |
I 级过滤精度Level I filtration rating | 100μm |
II级过滤精度Level II filtration rating | 1~40μm |
滤材材料Filter element material | 玻纤,不锈钢网fiberglass,Stainless steel mesh |
主体材料Structural material | 碳钢 carbon steel |
接口类型Type of connection | 螺纹thread |
适用粘度Viscosity | 10~150Cst |
电压Voltage | AC380V/AC230V/AC110V |
功率 Power | 0.18kw-0.35kw |
