风电润滑油滤芯为双精度过滤，滤芯由精滤芯和安全滤芯两部分组成，当滤芯压差低于3.5bar时滤芯上单向阀关闭工作介质经精滤芯进入下一执行元件。当滤芯压差大于3.5bar时，滤芯单向阀打开，工作介质经安全滤芯过滤。无论何种情况，未经过滤的油液都不会进入齿轮箱各润滑部位。

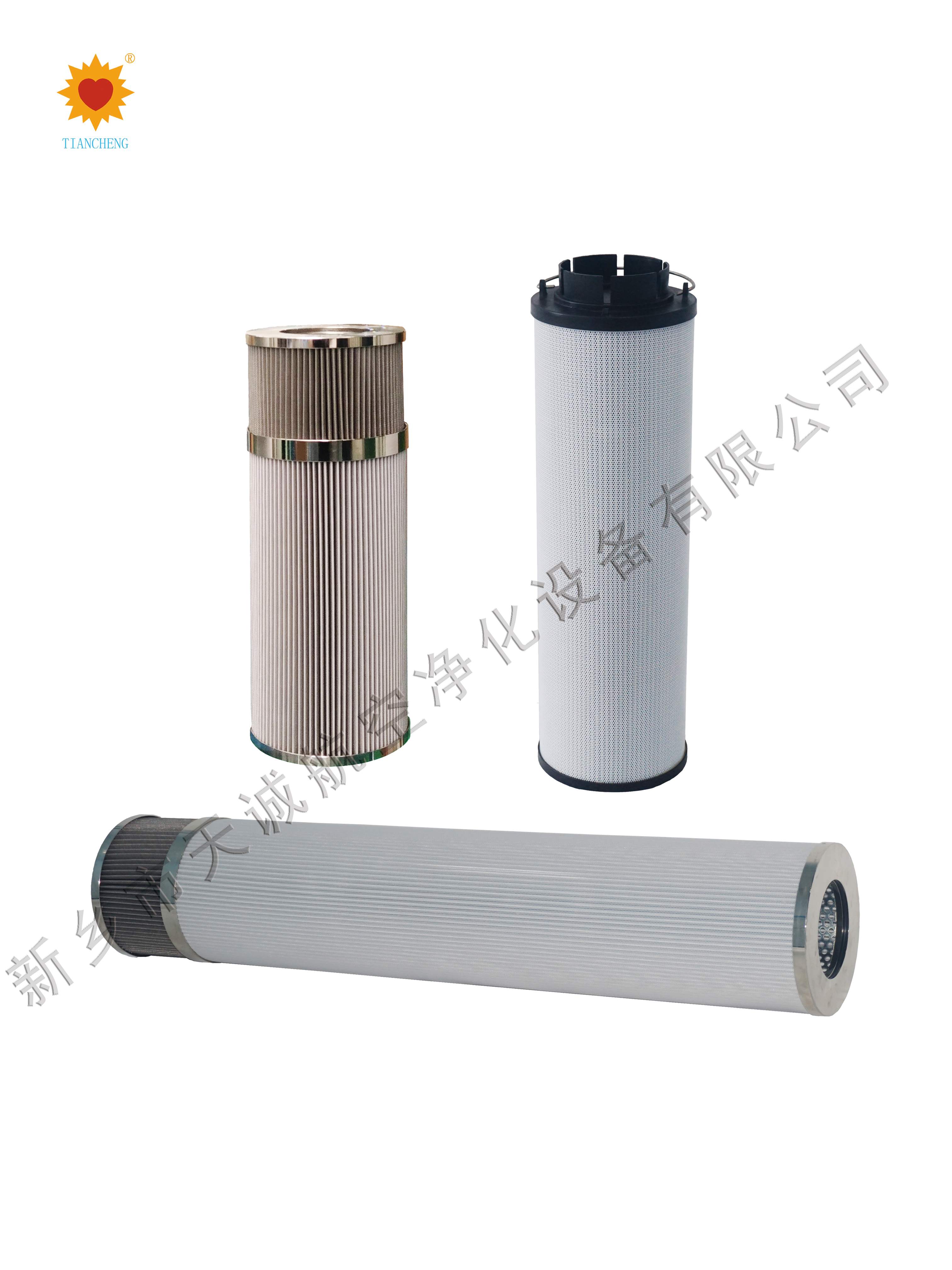

1300R010BN3HC替代液压油滤芯执行标准：
ISO2491 滤芯 - 抗破裂实验
ISO2492 滤芯 - 结构完整性实验
ISO2493 滤芯 - 材料与液体相容性实验
ISO3723 滤芯 – 端向负荷实验方法
ISO3724 滤芯 – 滤芯疲劳特性的测定
ISO3968 滤芯 – 压差流量特性的测定
技术参数
额定流量 | |
额定精度 | 10/50μm |
额定压力 | 15Bar |
旁通阀开启压力 | 3.5Bar |
工作温度： | -47~+107℃ |
额定流量
YLF3400-F10/W50H | 1300L/min |
YLF1300-F10/W50H | |
YLF3300-F10/W50H | |
YLF3200-F10/W50H | |
YLF3100-F10/W50H | |
YLF6800-F10/W50H | 2600L/min |
风电齿轮箱润滑过滤
