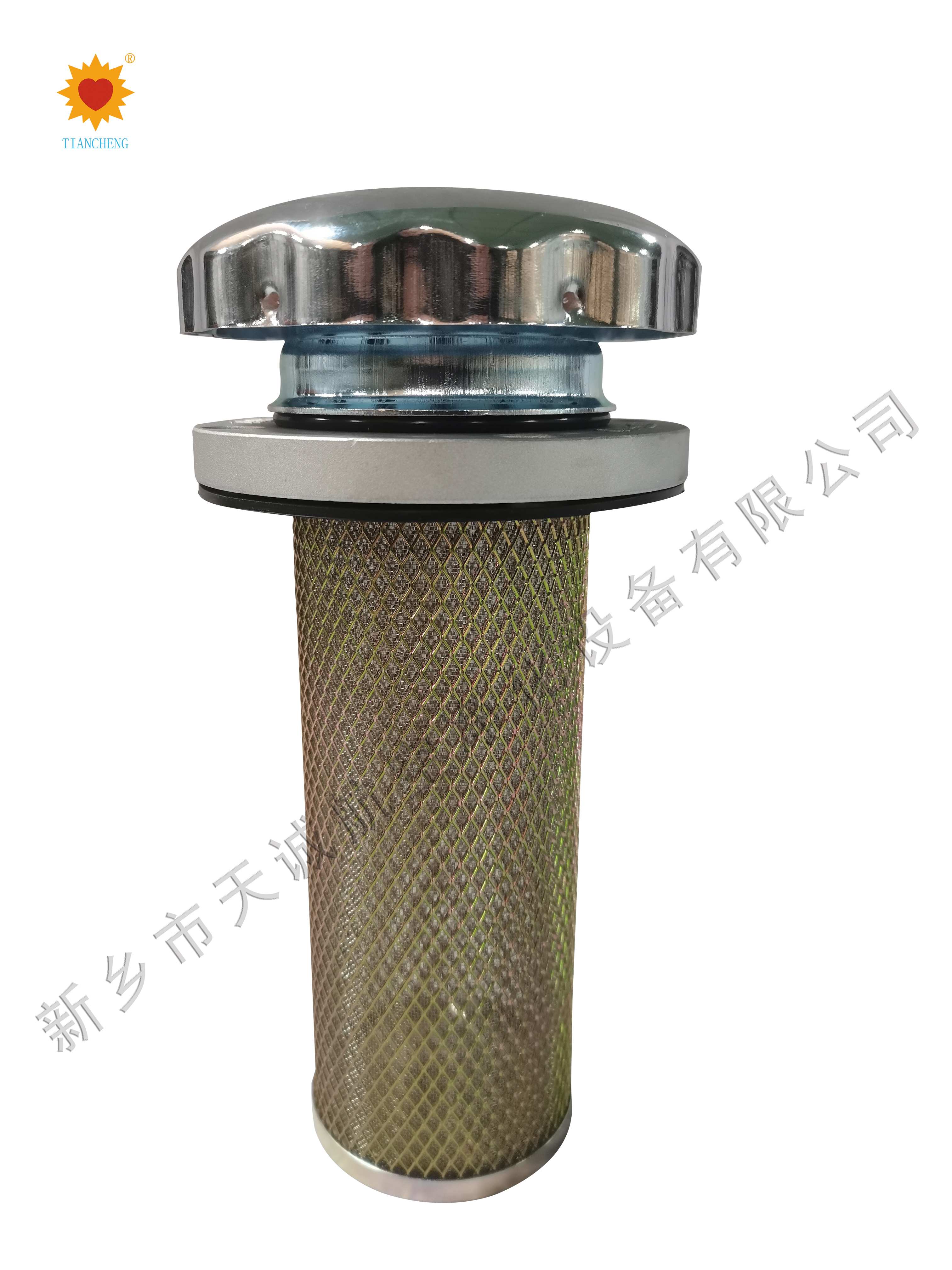

本产品的结构由空气过滤和加油过滤两部分组成，不仅可以防止加油过程中混入颗粒杂质，从而简化了油箱的结构，又有利于油液的净化。该产品采用了铜基粉末冶金烧结过滤片，与非金属过滤器相比，具有过滤精度稳定，强度大，塑性强，拆洗方便，并能承受热应力与冲击及高温下正常工作特点，多年来以为许多液压系统油箱配套使用。
技术参数：
工作介质：矿物油、乳化液、水一乙二醇、磷酸酯液压液（木棉定型滤纸仅适用于矿物油）
加油流量：9-160L/min
空气流量：65-1512L/min
油过滤精度：125μm
型号 | EF1-25 | EF2-32 | EF3-40 | EF4-50 | EF5-65 | EF6-80 | EF7-100 | EF8-120 |
加油流量(L/min) | 9 | 14 | 21 | 32 | 47 | 70 | 110 | 160 |
L(mm) | 80 | 100 | 120 | 150 | 190 | 220 | 274 | 333 |
D (mm) | Φ51 | Φ59 | Φ66.5 | Φ82 | Φ102 | Φ120 | Φ140 | Φ160 |
d (mm) | Φ39 | Φ47 | Φ55 | Φ66 | Φ81 | Φ96 | Φ118 | Φ138 |
螺钉 | M4×10 | M4×10 | M5×14 | M6×14 | M8×16 | M8×16 | M8×20 | M8×20 |
空气过滤精度 | 0.279 | 0.279 | 0.279 | 0.105 | 0.105 | 0.105 | 0.105 | 0.105 |
油过滤精度 | 125μm（可根据客户要求定做） | |||||||
工程车辆加油口
